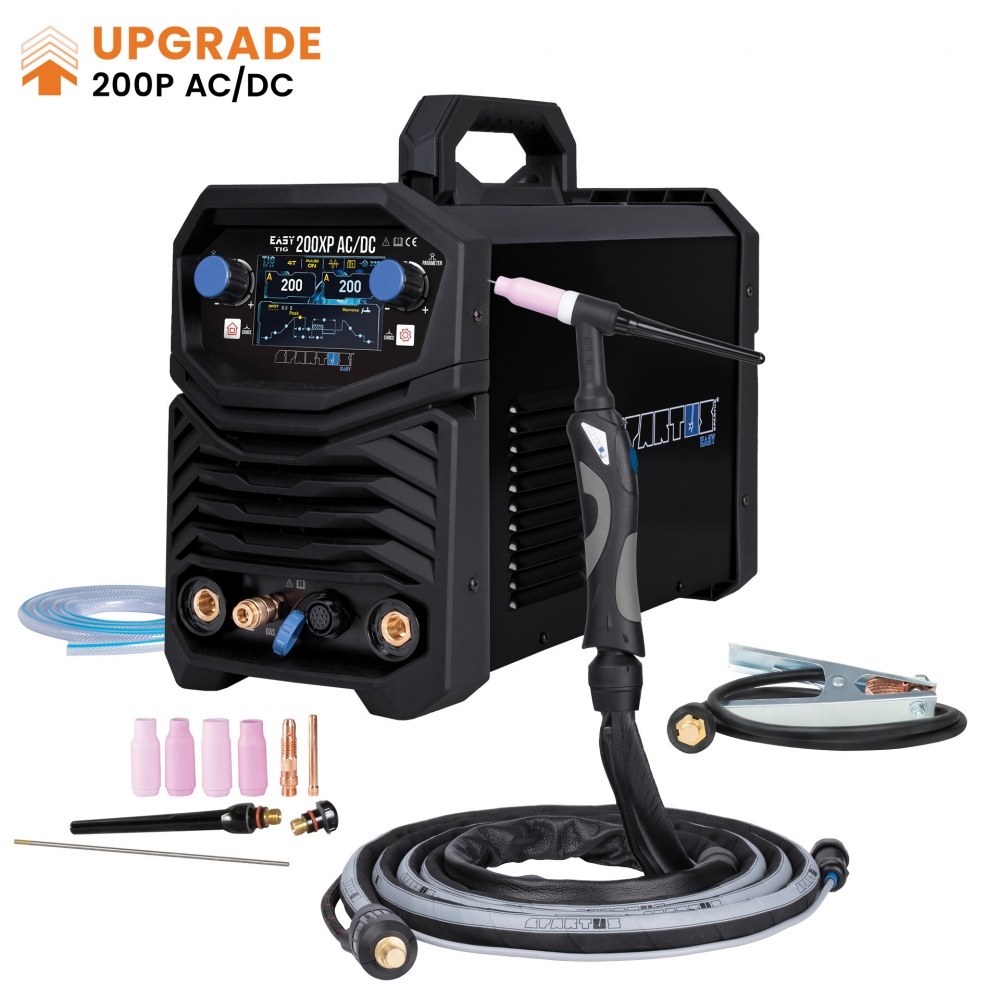

EasyTIG 200XP AC/DC package with TIG torch mini SPE 17 - 4m

Available

EASYTIG200XPACDC-PAK-17-4

Package equipement:
• EasyTIG 200XP AC/DC
• TIG torch SPE 17 1B 4m
• set of consumables
• work Clamp
• gas hose
• user’s manual

Variants

Product description

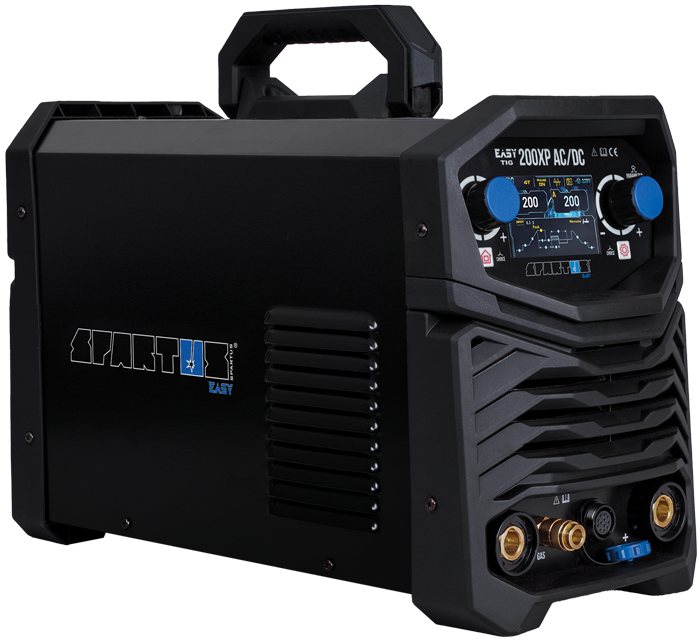

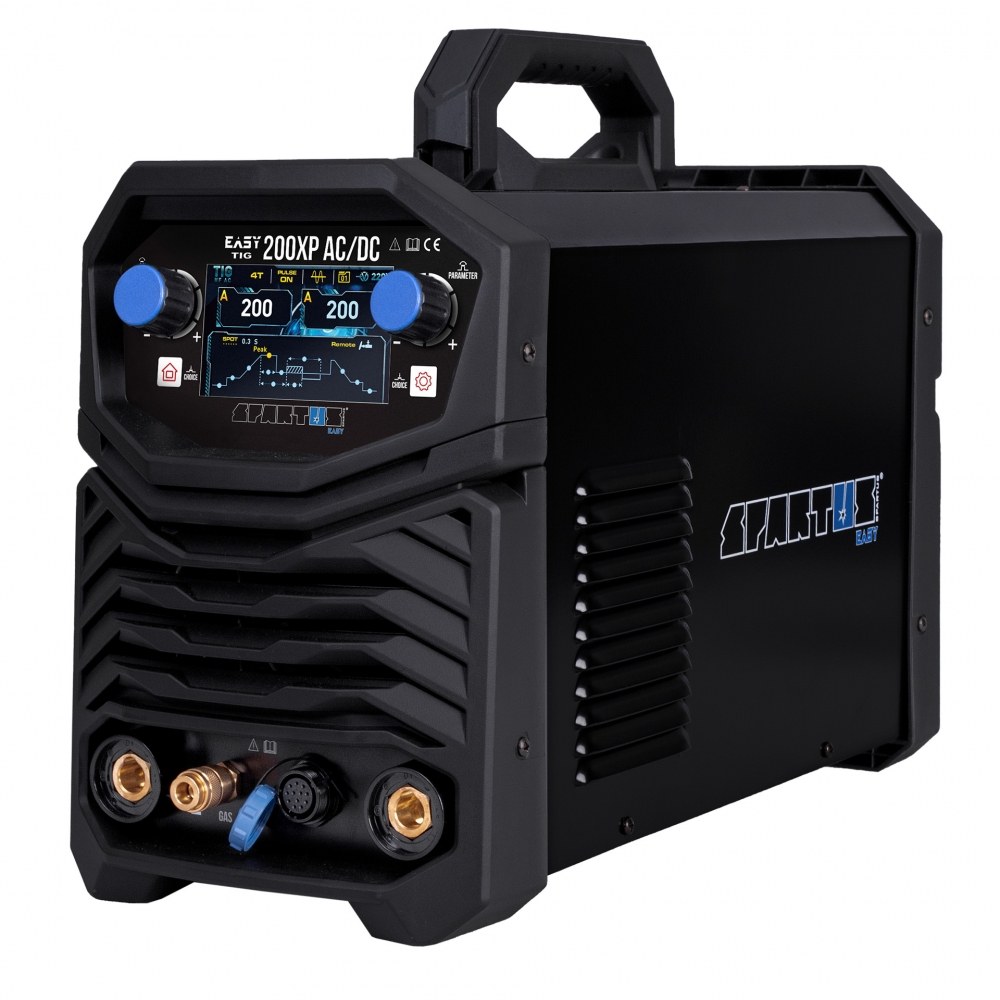

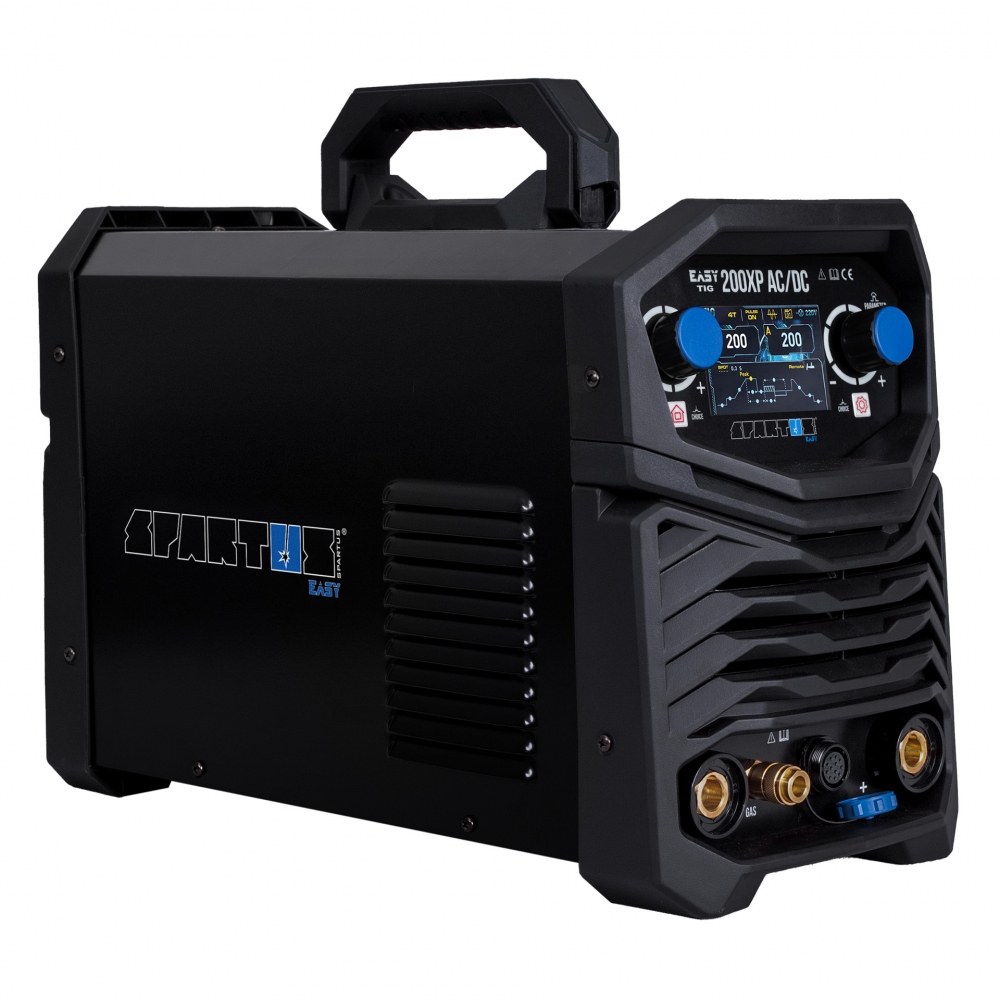

SPARTUS EasyTIG 200XP AC/DC – COMPACT AND VERSATILE TIG AC/DC WELDER WITH PULSE

SPARTUS EasyTIG 200XP AC/DC is a modern inverter TIG/MMA AC/DC welder powered from a single-phase 230V mains. Thanks to IGBT transistor technology and digital control, the device offers a wide range of welding capabilities while maintaining compact dimensions and low weight.
EasyTIG 200XP AC/DC is a universal welding source, perfect for both workshop and field work, offering advanced functions typically found in much larger and more expensive machines.

Spartus EasyTIG 200xp



TIG WELDING

EasyTIG 200XP AC/DC enables TIG welding in both AC and DC modes, offering a choice of arc ignition: non-contact (HF) and lift start. The welder is equipped with a pulse mode, allowing precise welding of thin materials with excellent control over welding parameters.

Features available to the user include:

  • AC waveform shape adjustment: square, sine, triangular
  • AC balance (20–80%) and frequency adjustment (20–250Hz)
  • Full pulse control: base current, pulse current, pulse width and frequency (up to 200Hz)
  • Control of pre-gas and post-gas time, current upslope and downslope
  • TIG SPOT and TIG Cold Weld modes for spot and low-temperature welding

These features ensure professional weld quality, precise arc control, and full customization of settings.



MMA WELDING

EasyTIG 200XP AC/DC is also an effective tool for electrode (MMA) welding in both DC and AC current. The process is supported by the following functions:

  • Hot Start – facilitates arc ignition at the beginning of welding
  • Arc Force – automatically adjusts arc dynamics for better control

Thanks to this, the welder performs well even with demanding electrodes and in challenging welding positions.

MEMORY CHANNELSSpartus EasyTIG 200XP - kanały pamięci

SPARTUS EasyTIG 200XP AC/DC offers as many as 10 memory channels, allowing you to save and quickly recall the most frequently used settings. This is particularly useful when working with various materials and techniques, saving time and improving weld repeatability.

CONTROL

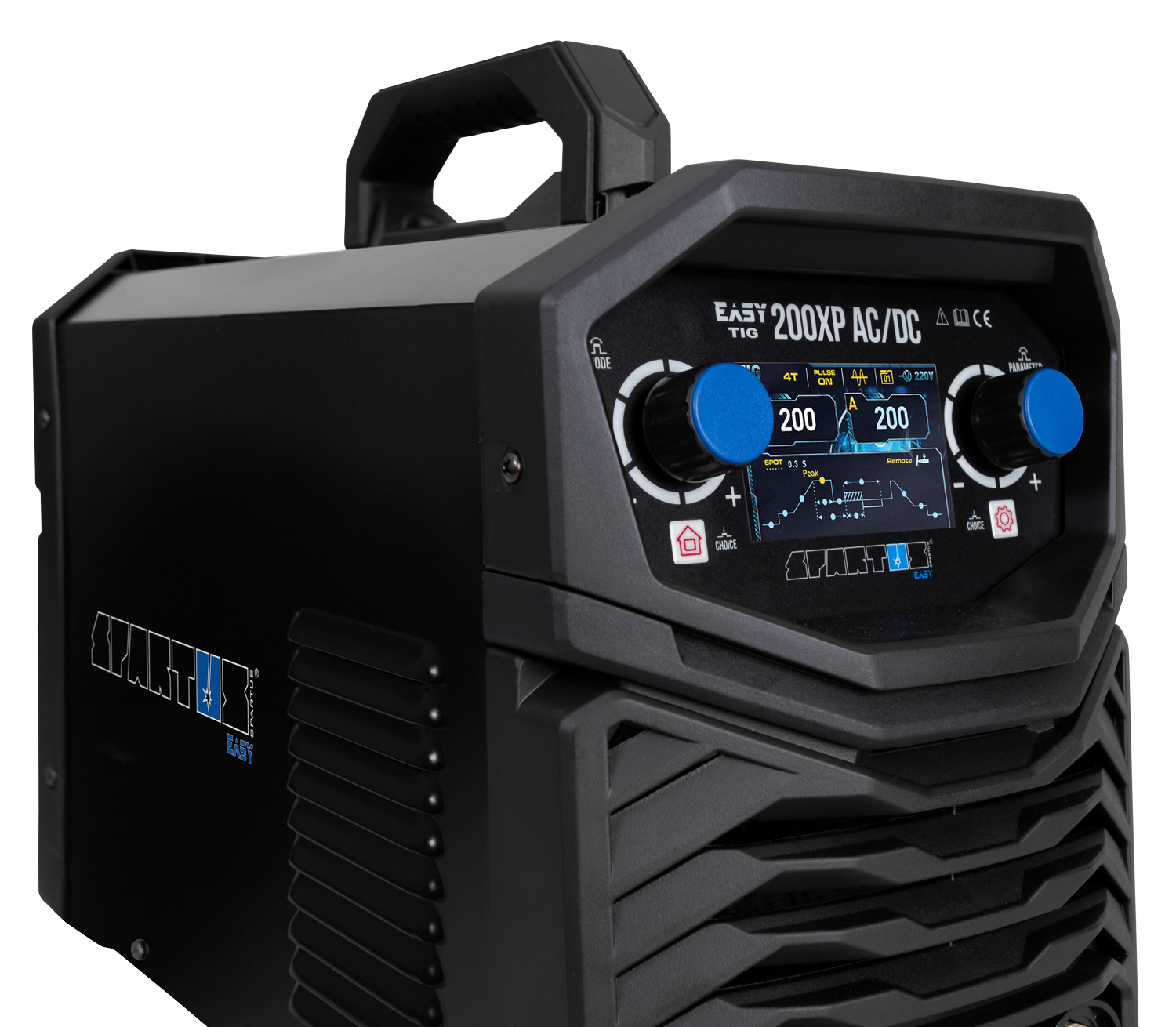

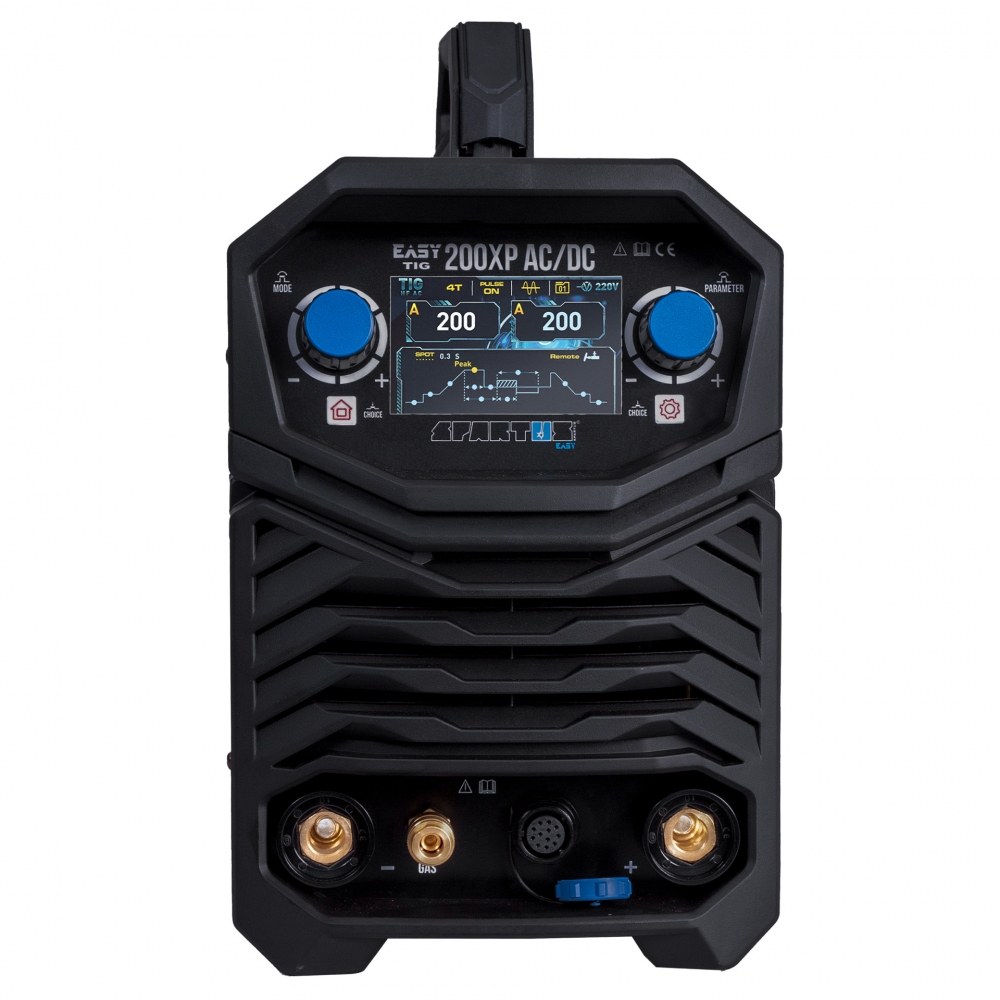

The device can be operated in 2T or 4T mode, with the option to choose between a TIG 1B torch switch or potentiometer control, and optional foot control. The clear digital control panel with a graphical TIG waveform display makes it easy to configure and adjust parameters to the user's needs.

Spaetus EasyTIG 200XXP - sterowanie Spaetus EasyTIG 200XXP - sterowanie nożne

Spartus EasyTIG 200XP - sterowanie

SPARTUS EasyTIG 200XP AC/DC is an advanced, compact welding power source that ensures precise TIG and MMA welding. With intuitive operation, extensive functionality, and mobility, it is an excellent solution for professionals seeking quality, reliability, and convenience in everyday work.

Technical details

Input ~1× 230V ± 10% 50 / 60 Hz
TIG welding current AC 10 – 200 / DC 10 – 200
TIG duty cycle 35%
Gas pre flow 0 – 10s
Gas post flow 0.1 – 10s
Up slope 0 – 5s
Down slope 0 – 5s
TIG Pulse yes
Pulse Amps AC/DC 10 − 200A
Pulse Width 5 – 100%
Pulse frequency 0.5 – 200Hz
AC frequency 20 − 250Hz
AC wave forms square, sinusoidal, triangular
AC balance 20 – 80%
2T/4T Control yes
SPOT welding yes
Arc ignition LIFT / HF
Control options wired foot control, control in the handle potentiometer
MMA welding current 10 – 200A
Arc Force yes
Hot Start yes
No-load voltage 68V
Current consumpiton TIG 36A / MMA 43A
Power factor (cosφ) 0.73
Efficiency η 85%
Insulation class H
Protection class IP21S
Weight 11kg
Dimensions 490 × 225 × 340mm
Control plug 9SPA - SPARTUS®
